Technical Spefications of GF-104 Big  Professional Grommet Hand Press Advantages

ü GF-104  provides comfortable grip and easy fastening of metal accessories and eyelets, grommets

ü GF-104 have durable and strong body provide comfort attaching eyelets , rivets all metal accesories montage.

ü Interchangeable dies settings

ü Easy to carry.

ü Suitable numerous materials

ü 3 Year Warranty

ü Parts and service avaliable

ü Machine body made of highquality  bestquality  ironcastingrawmaterial

ü GF-104 is compatiable with all size self piercing grommet dies,smallest #1.7 upto biggest size #5.5.

ü GF-104 can attach all type snap buttons , ring snaps ,spring snaps , bebeto snaps, jean buttons, hallow rivets, tubular rivets, double cap rivets.

8.5 kg

Net Weight

18,7 IBS

120 mm

Throat Depth Dimension

4.72 inches -4 23/32 inch

440 mm

HeightDimension

17,33 inches

90 mm

WidthDimension

3,54 inches- 3 35/64"

230 mm

Depth Dimension

 9  1/16 "

9,8 mm

BottomDieadaptor hole

1/2 inch

6,35 mm

Top Of DieScrew

1/4 inch

Write a review

Note: HTML is not translated!
    Bad           Good

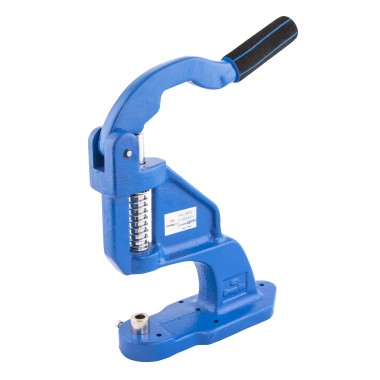

GF-104 Professional grommet &eyelet hand press

  • Product Code: GF-104
  • Availability: In Stock

Tags: Pneumatic eyelet machine, GF-10 Pneumatic grommet &eyelet machine, pneumatic grommet machine

//-->
